when drafting my design, I tried using the slash and spread operation on curved lines but it didnt respond so I had to change them to straight lines
The cut operation didnt work on the curved lines either.
Is there something im doing wrong?
Cutting, slash and spreading curves
Forum rules
Technical matters can be very dry and may require plenty of details at times. Try to describe your situation and don't get scared, when we ask about your operating system or hardware. All will be well!
Technical matters can be very dry and may require plenty of details at times. Try to describe your situation and don't get scared, when we ask about your operating system or hardware. All will be well!
Re: Cutting, slash and spreading curves
Oh, would be great, if you would post a little snapshot of what you are trying to do, just so it's a bit easier for us to understand correctly.
Slash & Spread or Pivot will only cut by lines right now, though you can convert those cut lines afterwards into curves, of course.
And this just made us realize how good it would be to convert multiple lines/curves at once. This will go into the next update for sure!
Again, sometimes it can be a bit unclear what the problem may be without us seeing what the situation is. All these things will get much easier, once we have made all the tutorials, of course, and we hurry to get them done. In the meantime, let me try to show you briefly how it is meant to work:
Slash & Spread (simple, pleat and box pleat)
Cut
Slash & Spread or Pivot will only cut by lines right now, though you can convert those cut lines afterwards into curves, of course.
And this just made us realize how good it would be to convert multiple lines/curves at once. This will go into the next update for sure!
Again, sometimes it can be a bit unclear what the problem may be without us seeing what the situation is. All these things will get much easier, once we have made all the tutorials, of course, and we hurry to get them done. In the meantime, let me try to show you briefly how it is meant to work:

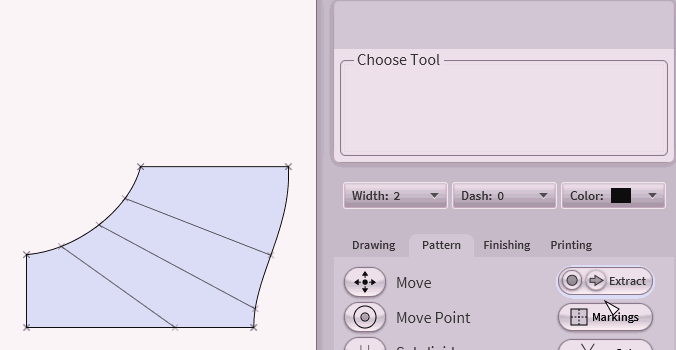

Slash & Spread (simple, pleat and box pleat)
- slashNspread2.gif (173.58 KiB) Viewed 9237 times
Cut
- cut.gif (219.23 KiB) Viewed 9237 times
Re: Cutting, slash and spreading curves

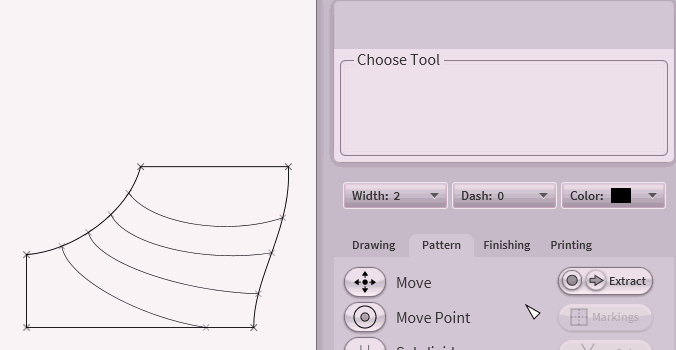

If you wanted to slice a piece by curves directly, you can also just extract slices you have prepared with curves...
Here you can also see how to select patternpieces with a double click and then move them. Ironically in this example I was moving the pieces numerically.
- ExtractSelectAndMove.gif (512.99 KiB) Viewed 9236 times
-
Meka Adediran
- Posts: 31
- Joined: Fri Sep 25, 2020 2:15 pm
Re: Cutting, slash and spreading curves
Great thanks.
These pretty much answers my questions.
Thank a lot.
These pretty much answers my questions.
Thank a lot.
-
Meka Adediran
- Posts: 31
- Joined: Fri Sep 25, 2020 2:15 pm
Re: Cutting, slash and spreading curves

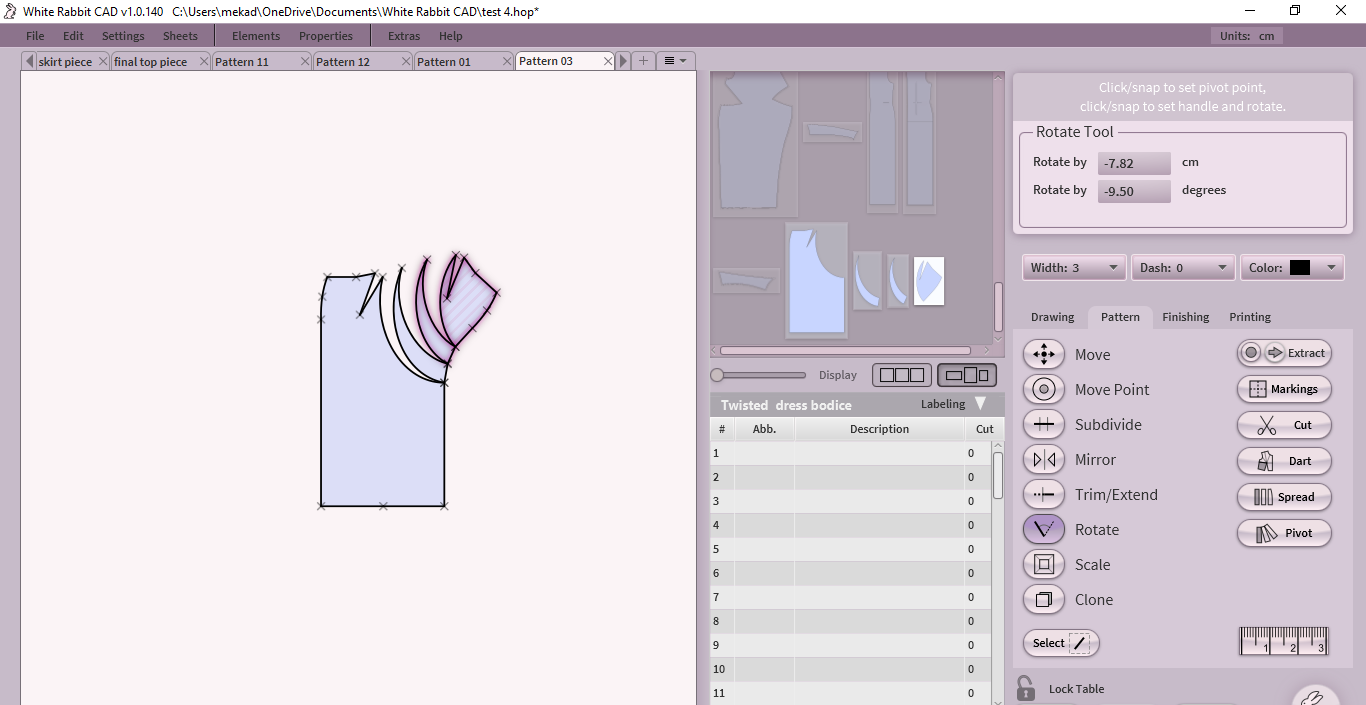

- White Rabbit CAD v1.0.140 C__Users_mekad_OneDrive_Documents_White Rabbit CAD_test 4.hop_ 02_10_2020 2_09_51 PM.png (136.13 KiB) Viewed 9232 times
Re: Cutting, slash and spreading curves
Excellent, Meka!
You have just inspired us to add conversion of multi-selections from line to curve and backwards. This makes it very easy to use Slash&Pivot or spread with lines and then convert them all to bezier.
I may post a neat little trick later, which shows a nice way to adjust multiple bezier curves equally.
It's quite wonderful, I must say. Even while it's just such a tiny group here on the forum, you are all immediately so inspiring. Just great!
You have just inspired us to add conversion of multi-selections from line to curve and backwards. This makes it very easy to use Slash&Pivot or spread with lines and then convert them all to bezier.
I may post a neat little trick later, which shows a nice way to adjust multiple bezier curves equally.
It's quite wonderful, I must say. Even while it's just such a tiny group here on the forum, you are all immediately so inspiring. Just great!
